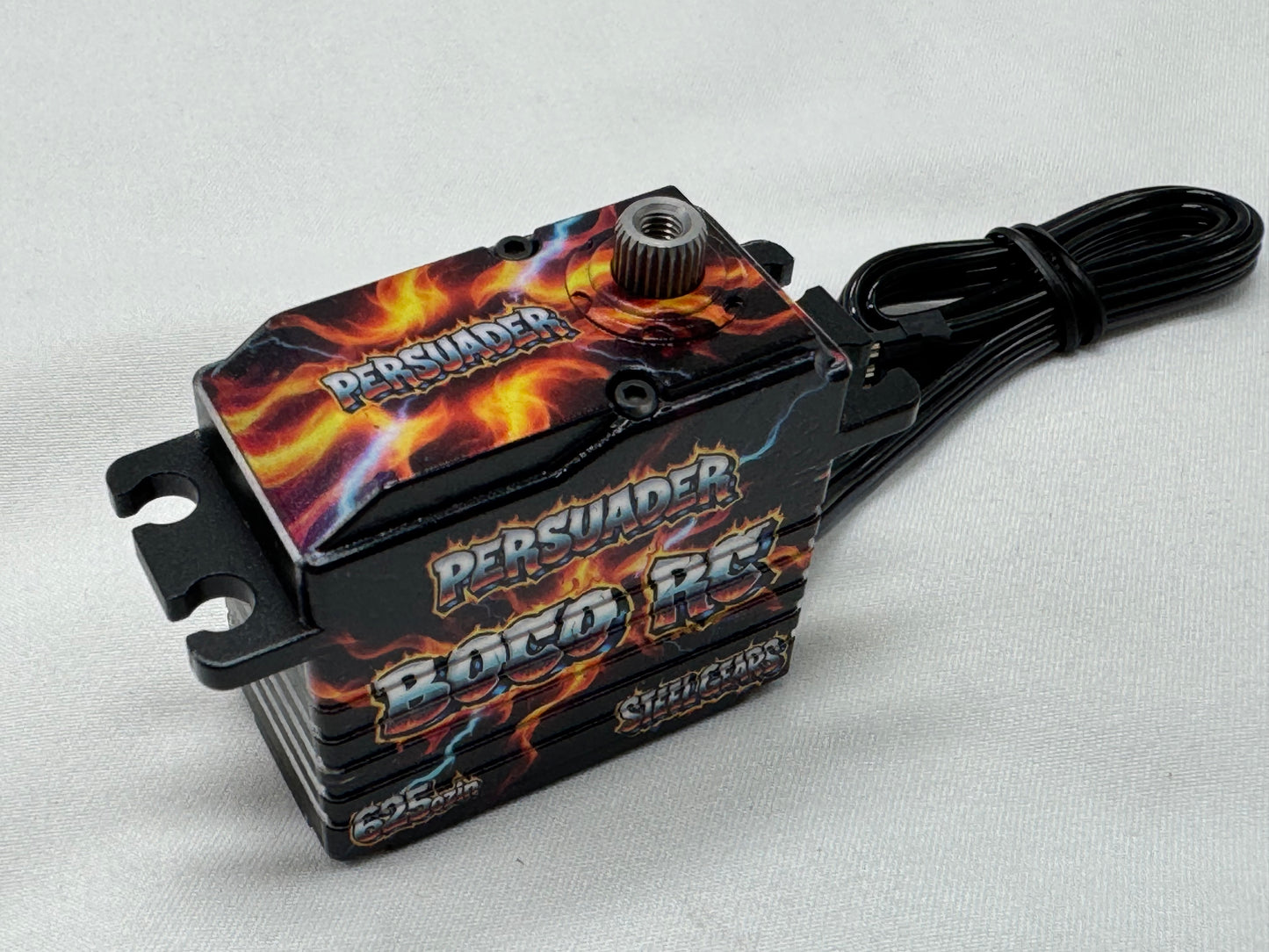

BOCO RC Persuader is intended to be the "jack of all trades" servo with plenty of power and speed for the vast majority of rigs out there. 1Tenth Team drivers have accumulated more than a few podiums with the Persuader steering the way.
This servo was designed to take some abuse. Thick 416 steel gears, high chrome shafts, full aluminum case, and triple ball bearing setup. With less than a 3% gear failure rate it's not much of a concern for most use cases.
With an almost 5amp max draw an external BEC is suggested for maximum performance. The Mamba X, Monster X, and some Hobbywings can run it fine. Check the specs on your ESC to be sure. The 1080 and some RTR ESC will run this servo OK but you might bet brownouts or lower performance.
25T Digital Brushless Motor
Full Aluminum CNC Case
Stainless Steel Gears
Triple Ball Bearing
IP67 Waterproof
Stall Torque
28kg-cm (389oz-in)@4.8V
34kg-cm (472oz-in)@6.0V
39kg-cm (542oz-in)@7.4V
45kg-cm (625oz-in)@8.4V
Operating Speed
0.140sec/60°@4.8V
0.115sec/60°@6.0V
0.100sec/60°@7.4V
0.085sec/60°@8.4V
Loading Current
3600mA@4.8V
4000mA@6.0V
4300mA@7.4V
4600mA@8.4V
Servo comes with our Buy Once Cry Once lifetime gear set warranty for original owner.
If you ever break or bend a gear just let us know and we'll get you a set!

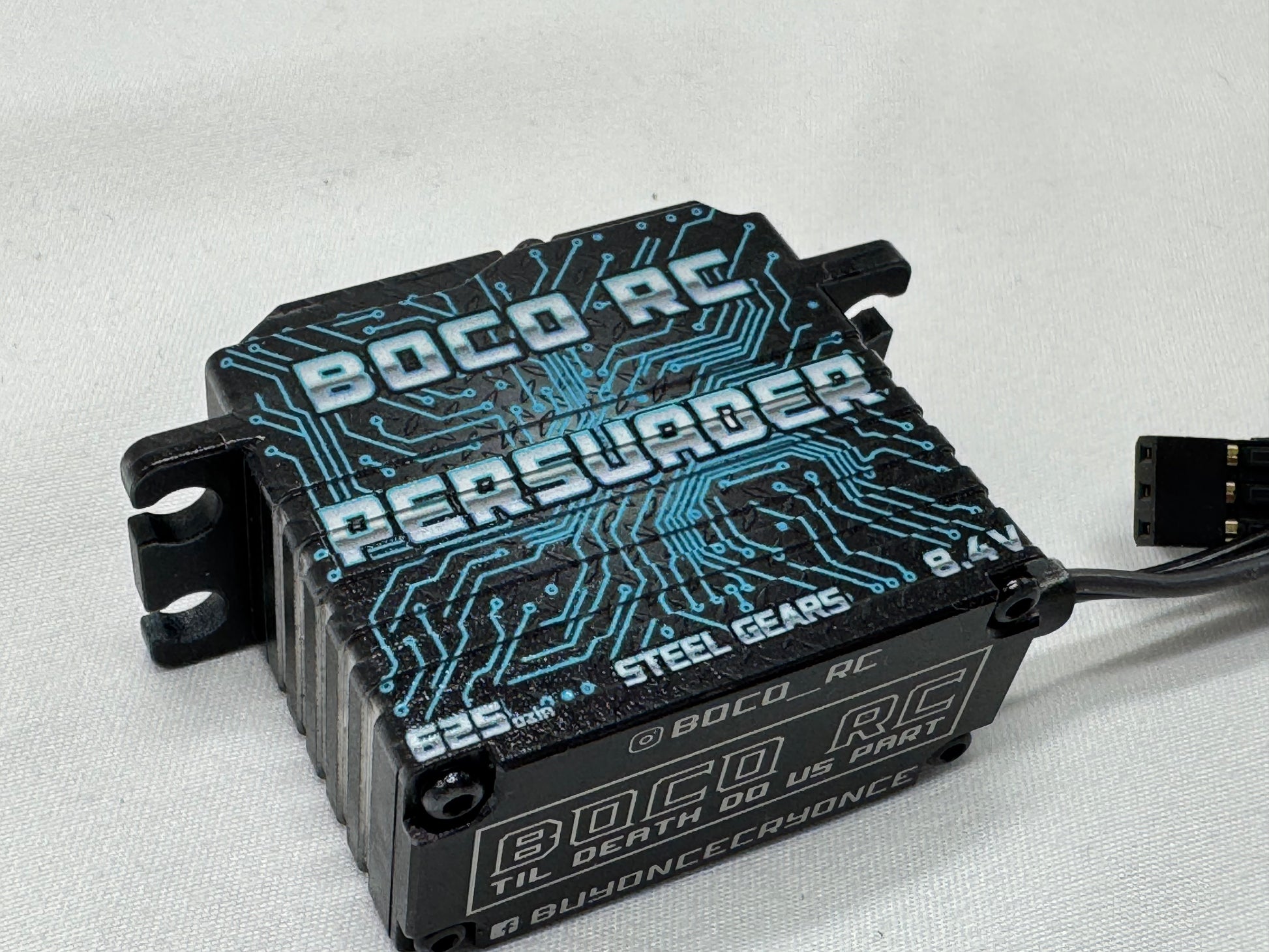

Graphics options are a UV paint that cures with adhesion similar to anodize. The servo is taken apart and ran through a multistep prep and coating process. There can be slight sizing, spacing, or color variance between servos and batches.
If your servo is BTA and drags low it will wear as the servo does. The rocks take aluminum away too. 90 Day warranty on chips, cracks, or lifting more than 2mmx3mm.
RTR or other ESCs with weak BEC would benefit from running an external BEC or a "glitch buster" capacitor for smoothest operation.
If you submarine your rig for extended periods please remember to remove the bottom plate and let the servo air dry just in case.
